Latest Version 2002-2014 OEM Sundance® Jacuzzi® Sweetwater Circuit Board With Circulation Pump Replaced Obsolete Original

Write a Review
SKU:
YMM7273
MPN:
6600-726
$498.00
Frequently bought together:

Description

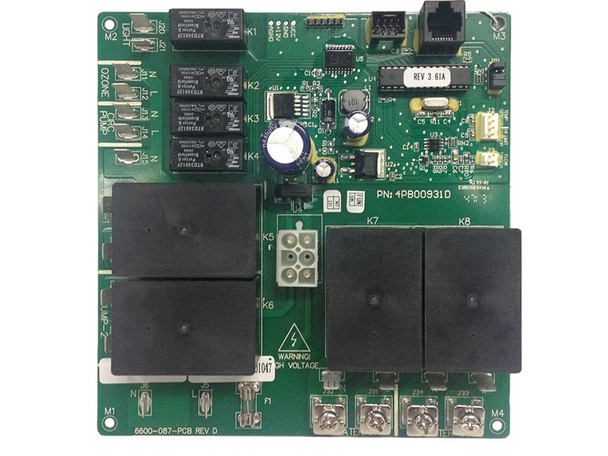

2002-2014 OEM SUNDANCE® JACUZZI® Sweetwater

Circuit Board with circulation pump

SUNDANCE® Spas & Sweetwater Spas models:

  • 2014+ Select Constance® and Victoria
  • 2014-03/2017 780 Montclair, Hamilton, Chelsee®, Certa
  • 09-2011-03/2013 780 1-pump Camden equipped with a circulation pump (old board was a 6000-167)
  • 01/2012-03/2012 1-pump 680 Burlington model equipped with a circulation pump (old board was a 6000-167)
  • 2008+ 1-pump 680 Burlington model equipped with a circulation pump
  • 2007+ 680 Hartford and Hawthorne models Equipped with a Circulation Pump
  • 2007+ 780 Hamilton, Chelsee®, Certa and Camden (1-pump)
  • 2005-2006 780 Series Ssundance® Spas (Palermo, Bahia, Cayman)
  • 2003-2005 Sweetwater Board (Palermo, Bahia, and Cayman)
  • Replaced the 6600-087 and 6600-088 Board 3.56, for circulation pump systems.
  • If you have a 6600-087 and the eprom chip starts with a "5" (such as REV 5.54), you have a 6600-287 board.

2002+ JACUZZI®® Hot Tub models:

This board fits most J-300 and J-200 series spas with an LED display, and a circulation pump, and  240v power. It is compatible with the following years and models.

  • 2008+ J-375
  • 2007+ J-365, J-355, J-345, J-335
  • 2005-2007 J-325 (240v Model)
  • 2002-2006 J-335, J-345, J-330, J340
  • 2002-2003 J-325, J-320
  • 2008+ J-230 with Circulation pump
  • 2007+ J-280/J-270 with Circulation pump (came out mid-year)
  • 2011 J-LX®, J-LXL®

Jumper settings are as follows:

Jumper 2 - On 1 Pin - 15A, On 2 Pins - 50A

Jumper 4 - On 1 Pin - 2 pumps, On 2 Pins - 1 pump

Jumper 6 - Used along with Jumper 2

Jumper 8 - On 1 Pin - Celsius temp display, On 2 Pins - Fahrenheit temp display

If you have a J-200 series spa that does not have a circulation pump, you will need a different circuit board 270066

This board includes the logic chip pre-installed, and is compatible with both 60 Hz and 50 Hz power

This board is for circulation pump systems.
Comes with a Series 3 chip. If your circuit board has a Software Chip that begins with a 3, then this is the correct series board. Sundance® has revised this chip several times, we send you the board with the current chip. If you have an older board without a Circulation pump, then you need a board with a Series Chip that starts with a 5.

If you have an older board WITHOUT a Circulation pump, then you need a board with a Series Chip that starts with a 5. This would be a 270066 board.
