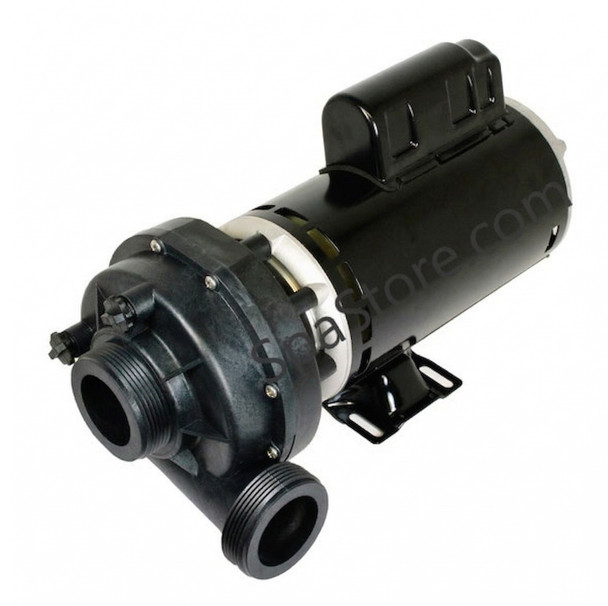

Jacuzzi® J-280 Spa Pump 1 Speed 230 Volt 2.5 HP RPM 3450 CURRENT VERSION Replaced Emerson T55SWBNC-999 No Base

Write a Review
SKU:
Jacuzzi J280 One Speed-Pump No Base
MPN:
6500-341
Availability:
FREE SHIPPING
  • J-280 Spa Pump 1 Speed 230 Volt 2.5 HP RPM 3450 CURRENT VERSION Replaced Emerson T55SWBNC-999
  • J-280 Spa Pump 1 Speed 230 Volt 2.5 HP RPM 3450 CURRENT VERSION Replaced Emerson T55SWBNC-999
$574.00

Description

Jacuzzi® J-280 Spa Pump1 Speed 230 Volt 2.5 HP RPM 3450 CURRENT VERSION
Replaced Emerson T55SWBNC-999
Click here to purchase the required Pump Bracket & Orings

  • 1 Speed
  • 10 Amps
  • 230 Volt
  • 3450 RPM
  • Inlet and outlet diameter is 2"
  • Outer thread diameter is 3 1/16"

This is a newer pump design. Your old pump had the mounting base attached to the bottom of the pump.
The new design requires a separate pump bracket for easier installation.
The new pump does not come with an electrical cord. Reuse the electrical cord from the pump being replaced.

Note: This is a newer style pump and requires the use of a separately sold Pump Bracket & Orings below:

  • Green=Ground
  • White=Common
  • Black=High Speed
