Description

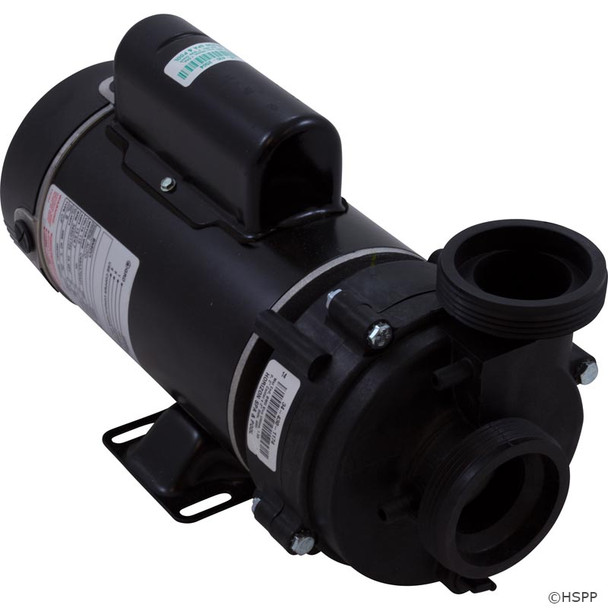

6500-207 Sundance® Spas Vico Pump 1.5HP, 2 Speed, 120 Volt
Used on Mid-1990's Sundance® Spas. Complete with motor (no power cord): 1.5 Horsepower, 2 Speed, 120 Volt.
Uses PKUL15HSDCS Side discharge wet end, 1 1/2 HP, 2 Speed, 120 Volt pump with 1 1/2" Union Inlet/outlet (not as shown).
Rio and Tango 1995-1996 and others
Vico pumps provide long life, excellent performance, value pricing and configuration flexibility all in a cost-effective package. With flow rates that can exceed 230 gallons per minute, Vico pumps are ideal for value- priced applications in any size spa. With lower price points, ease of installation, high flow rates, and energy efficient packages, Vico pumps offer the options you need and spa owners truly appreciate.
Spa Pump Features:
- Compact 48 frame design
- Dual Speed Pump (can also be wired for single speed)
- 115v options for portable plug and play spa models
- Multi-direction volute mounting options deliver a range of plumbing configurations
- All seals are carbon ceramic with Viton elastomers for long-lasting performance. Easily enduring prolonged heat and chemical exposure
Complete Pump Type | Portable Spa Pump |
Speed | 2 Speed (2-Spd) |
Motor Voltage | 115v |
Drain Plug Location | 6 o`clock |
Pump to Motor Foot Types | 13 |
Suction Auxiliary Port | 3/8" barb (b) 1ea |
Suction Style | Center |
Suction Connection (Physical Dimension) | 3-1/16"od |
Suction Connection Type | Male Buttress Thread (mbt) |
Suction Pipe Size | 2" |
Discharge Auxiliary Port | 3/8" barb (b) 1ea |
Discharge Style | Side |
Discharge Connection (Physical Dimension) | 3-1/16"od |
Discharge Connection Type | Male Buttress Thread (mbt) |
Discharge Pipe Size | 2" |
Horsepower | 1.5hp |
Motor Frame | 48 Frame Thru-Bolt |
Motor Amperage/Wattage | 13.5A/4.7A |
Manufacturer | Vico |
