CURRENT VERSION 2 Speed 2.5 HP Jacuzzi® J-385 Spa Pump 230 Volt Emerson T55MWCCE-1208

Write a Review
SKU:
Jacuzzi J385 Pump 2 Speed
MPN:
6500-343
Availability:
FREE SHIPPING
  • 2 Speed 2.5 HP Jacuzzi® J-385 Spa Pump 230 Volt Emerson T55MWCCE-1208
  • 2 Speed 2.5 HP Jacuzzi® J-385 Spa Pump 230 Volt Emerson T55MWCCE-1208
  • CURRENT VERSION 2 Speed 2.5 HP Sundance® Cameo Spa Pump 230 Volt Emerson T55MWCCE-1208
  • 2 Speed 2.5 HP Jacuzzi® J-385 Spa Pump 230 Volt Emerson T55MWCCE-1208
$588.00

Description

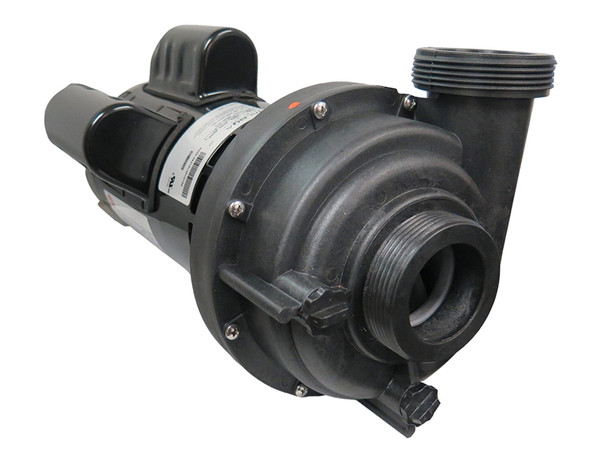

CURRENT VERSION 2 Speed 2.5 HP Jacuzzi ® J-385 Spa Pump
230 Volt Emerson T55MWCCE-1208
Click here to purchase the required Pump Bracket & 2" Orings

Specifications: Latest Version-Energy Saver Pump

    • 11 / 3.3 Amp
    • 2 Speed
    • 3450 / 1725 RPM
    • 2.5 HP / 4.2 Brake HP
    • 230 Volt
    • 48 Frame
    • Union connection: The inlet and outlet inner diameter is 2".  The outer diameter is 3 1/16".
    • The wet end can be rotated to desired position.
    • Red Wire for High Speed, Black Wire for Low Speed, White Wire for Common, Green Wire for Ground

This is a newer pump design. Your old pump had the mounting base attached to the bottom of the pump.

The new design requires a separate pump bracket for easier installation.
The new pump does not come with an electrical cord. Reuse the electrical cord from the pump being replaced.

Note: This is a newer style pump and requires the use of a separately sold Pump Bracket below:


Current Replacement Pump for Jacuzzi® Models: Pump #1 on the control panel
