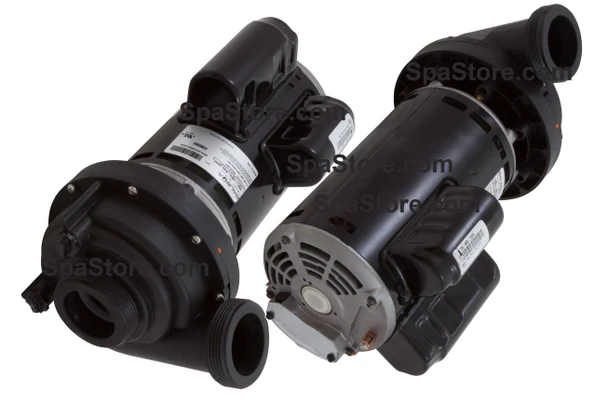

Current Version Sundance® Spas 2005 Optima 850 Series Energy Saver Replaced 2 Speed 2.5 HP Theramax Spa Pump US Motors T55MWCNM-1427 Pump 230 Volts 3450/1725 RPM

Write a Review
SKU:
2005 Sundance Optima Pump 2 Speed
MPN:
5831
Availability:
FREE SHIPPING
  • Current Version Sundance® Spas 2005 Optima 850 Series Energy Saver Replaced 2 Speed 2.5 HP Theramax Spa Pump US Motors T55MWCNM-1427 Pump 230 Volts 3450/1725 RPM
  • Sundance Theramax 2 Speed Spa Pump, 2.5 HP, 230 Volt, 11.0 / 3.3 Amp, 6500-343, 48 frame. Pump Wiring Diagram
  • Sundance® Theramax 2 Speed Spa Pump, 2.5 HP, 230 Volt, 11.0 / 3.3 Amp, 6500-343, 48 frame. Pump Rotation image
$592.00

Description

Current Version Sundance® Spas 2005 Optima 850 Series Energy Saver
Replaced 2 Speed 2.5 HP Theramax Spa Pump US Motors T55MWCNM-1427 Pump 230 Volts 3450/1725 RPM.

Specifications: Latest Version-Energy Saver Pump
Click here to purchase the required Pump Bracket & 2" Orings

    • 11 / 3.3 Amp
    • 2 Speed
    • 3450 / 1725 RPM
    • 2.5 HP / 4.2 Brake HP
    • 230 Volt
    • 48 Frame
    • Union connection: The inlet and outlet inner diameter is 2".  The outer diameter is 3 1/16".
    • The wet end can be rotated to desired position.
    • Red Wire for High Speed, Black Wire for Low Speed, White Wire for Common, Green Wire for Ground

Talk to Live Tech:  Call 858-210-8062 Mon-Sat 9:am-5:pm Pacific Time
FREE Step by Step Video How to install this pump.  Emailed upon purchase

If you need help matching up your old pump, send photos to help@spastore.com
Be sure to include photos all stickers on the pump and hot tub model & year if known.

Note: This is a newer style pump and requires the use of a separately sold Pump Bracket below:

Click here to purchase the required Pump Bracket & 2" Orings

This is a newer pump design. Your old pump had the mounting base attached to the bottom of the pump.
The new design requires a separate pump bracket for easier installation.
The new pump does not come with an electrical cord. Reuse the electrical cord from the pump being replaced.
